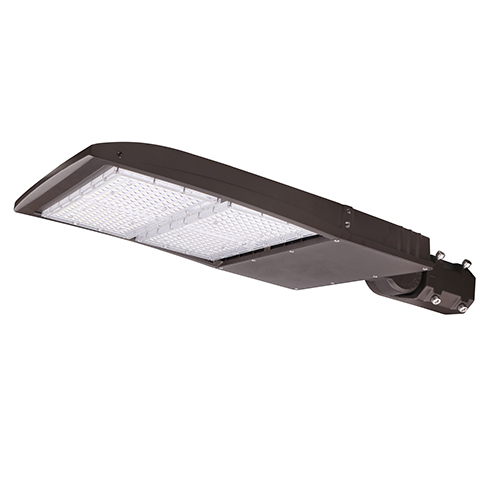

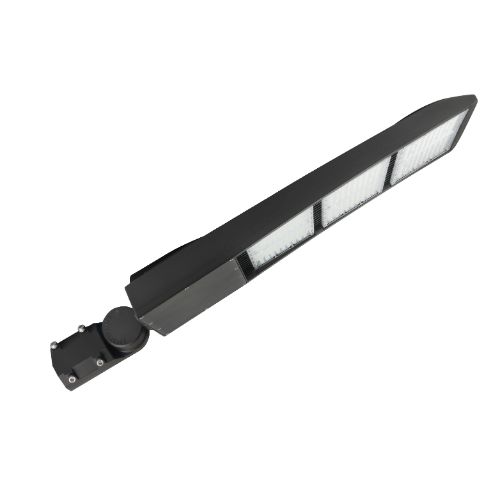

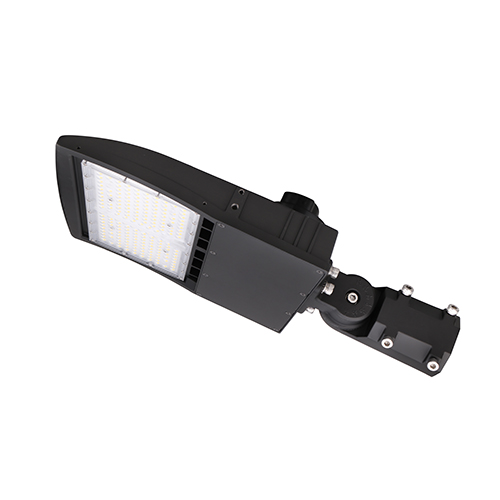

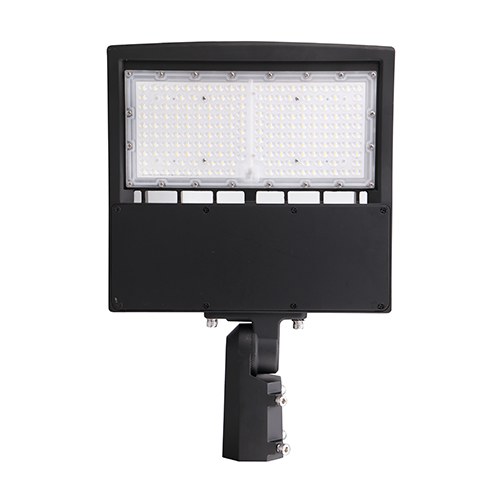

LED Shoebox Area Light 150-450W
STOCK MODELS
MODEL NUMBER | PRODUCT DETAILS |
---|---|
LEP-SB14-5700-AM | Shoebox Area Light 120-277V 150-450W 5700K Slip Fitter |
LEP-SB14-5000-AM | Shoebox Area Light 120-277V 150-450W 5000K Slip Fitter |
Specification
SIZE: | 150W: 11.3″ L x 19.7″ W x 3″ D 240-300W: 14″ L x 25.1″ W x 3″ D 450W: |
150W: | 21,135lm |
240W: | 33,816lm |
300W: | 42,270lm |
450: | 63405lm |
CCT: | 5000K, 5700K |
VOLTAGE: | AC100-277V (Surge Protected) |
DIMMING: | 1-10V |
BEAM ANGLE: | 150*85°(Type Ⅲ) |
CRI: | >70 |
PF: | >0.9 |
IP RATE: | IP65 |
MATERIALS: | Aluminum |
FINISH: | Black, Brown, White |
LIFESPAN: | 50,000 hours |

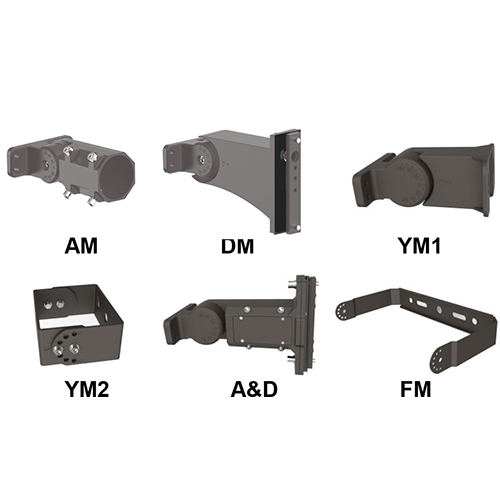

MOUNTS: | Slip Fitter, Small Yoke, Large Yoke, Extruded Arm, 2-in-1 Slip Extruded Slip Fitter |
OPTIONAL: | Photocell, AC200-480V |
DESCRIPTION: | LED Shoebox Lights are commonly used to replace HPS flood lights and metal halides. These area lights are safe for outdoor use and protected from rain, snow, and weak jets of water, such as sprinklers. LED Shoebox Lights are perfect for stadiums, parks, billboards, and places of worship. These come with a surge protector and slot for a photocell sensor. |
Features
0-10vdc dimming is standard
Integral photocell is standard.
Clear polycarbonate lens, 110 degree.
Five ½” NPT threaded openings.
Optional surge protector, PIR sensor, microwave sensor, emergency back up.
Wet (IP65) rating.
5 years’ warranty
