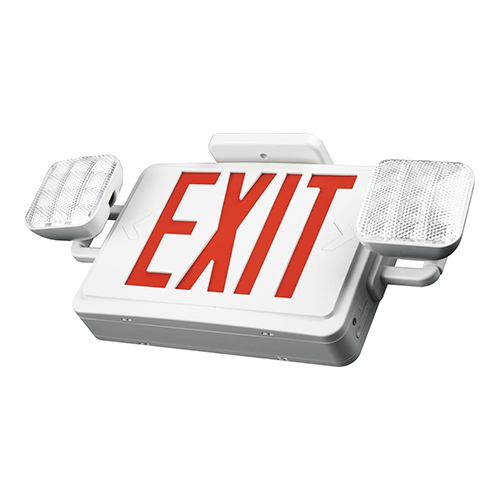

LED Exit & Emergency Combo Sign 5W
STOCK MODELS
| MODEL NUMBER | PRODUCT DETAILS |
|---|---|
| LEP-EXTEC2 | Exit & Emergency Combo Sign 5W |
Specification
| SIZE: | 11.7” L x 12” W x 3.8” H |
| WATTS: | 5W |
| LUMEN: | 300lm |
| VOLTAGE: | AC120/277V (60Hz) |
| DIMMABLE: | No |
| IP RATE: | IP20 |
| MATERIALS: | Thermoplastic ABS |
| HOUSING COLOR: | White |
| LIFESPAN: | 50,000 hours |
| BACKUP TIME: | ≥90 minutes |
| MOUNTING: | Wall, Ceiling |
| SIDES: | Single Sided |
| DESCRIPTION: | This Exit and Emergency Combo Sign is designed to show an exit during a crisis. It has two adjustable flood light arms to add more illumination during a power outage. Once power has stopped this sign will remain on for a minimum of 90 minutes. |
Features
Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating.
Innovative, easy installation in minutes.
Letters 6”height with 3/4”stroke. RED letters.
Single or double face(Universal)
Universal J-box mounting pattern.
120V/277VAC Dual voltage operation.
2X12pcs ultra bright 2835 SMT LED lamp heads for emergency mode.
Built-in 9.6V600mAh Nickel cadmium battery for minimum 90 minutes emergency operation.
Maximum 24 hours for full recharge time.
Test switch and charge indicator.
UL and cULus listed.
0° to 40° C indoor damp location listed.
Five years warranty for the electrical parts and housing.
Three years warranty for battery.
